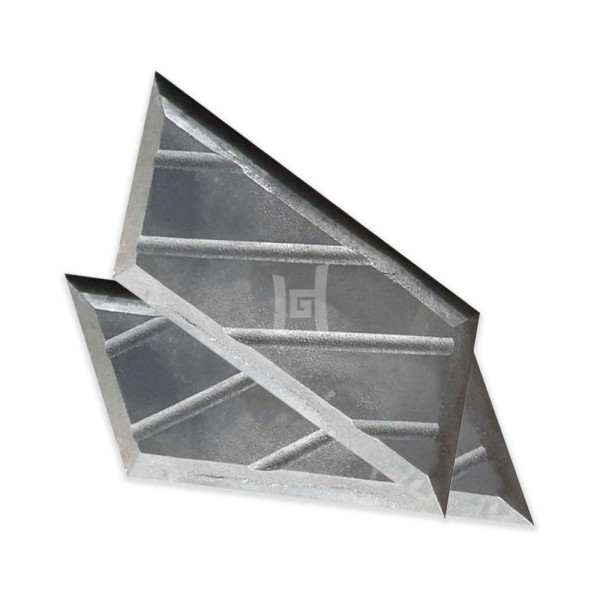

Bimetallic White Iron Wear Parts For Earthmoving
Typical Types/Shapes:
- Standard Wear Bars
- Skid Blocks
- Shaped Wear Bars
- Elbow Wear Bars
- Roll Bars
- Microledges
- Rockbox Liners
- Grizzly Bars
- Description
Bimetallic white iron wear parts are unique wear resistant materials in that they combine very high wear resistant qualities of a high white iron (ASTM A532 15/3CrMo, 700BHN-63HRC) with a weldable & high impact toughness mild steel through vacuum brazing to create a product that is exceptionally resistant to impact and abrasion while retaining.
Types
- Chocky bars
- Wear buttons & donuts
- Standard wear bars
- Shaped wear bars
- Skid bars
- Shredder/Grinder hammer tips
- Microlegdes
- Elbow wear blocks
- Rockbox liners Grizzly bars
Technical Data
- Hardness: 63HRC/700BHN
- Shearing strength: 250Mpa.
- Tensile strength: 630Mpa Min.
Chockblocks
| ITEM NO. | Size(mm) | Dimension | N.W(kg) | |||
| A | B | C | D | |||
| CB 25 | 240x25x23 | 240 | 25 | 15 | 8 | 0.9 |
| CB 40 | 240x40x23 | 240 | 40 | 15 | 8 | 1.5 |
| CB 50 | 240x50x23 | 240 | 50 | 15 | 8 | 1.9 |
| CB 65 | 240x65x23 | 240 | 65 | 15 | 8 | 2.5 |
| CB 80 | 240x80x23 | 240 | 80 | 15 | 8 | 3.2 |
| CB 90 | 240x90x23 | 240 | 90 | 15 | 8 | 3.5 |
| CB100 | 240x100x23 | 240 | 100 | 15 | 8 | 3.9 |
| CB 130 | 240x130x23 | 240 | 130 | 15 | 8 | 5.3 |
| CB 150 | 240x150x23 | 240 | 150 | 15 | 8 | 6 |
Wear Button/DonutsInquire Now
| ITEM NO. | Size(mm) | Dimension | N.W(kg) | |||
| A | B | C | D | |||
| WB 60 | dia.60×27 | 60 | 27 | 17 | 10 | 0.7 |
| WB 75 | dia.75×27 | 75 | 27 | 17 | 10 | 0.9 |
| WB 90 | dia.90×27 | 90 | 27 | 17 | 10 | 1.4 |
| WB 110 | dia.110×32 | 110 | 32 | 20 | 12 | 2.1 |
| WB 115 | dia.115×32 | 115 | 32 | 20 | 12 | 2.5 |
| WB 150 | dia.150×41 | 150 | 41 | 25 | 16 | 5.7 |
