Severe Abrasion Low to Medium Impact Chromium Carbide Overlay Plate( 4-50mm Overlayer Thickness )
Overlay thickness range: 3-25mm
Wear plate size: 1400*3000,1400*3400, 1400*3500, 2100*3500, customized
- Description
Chromium Carbide Overlay Plate (4–50mm) – High Wear Resistance for Abrasive Environments

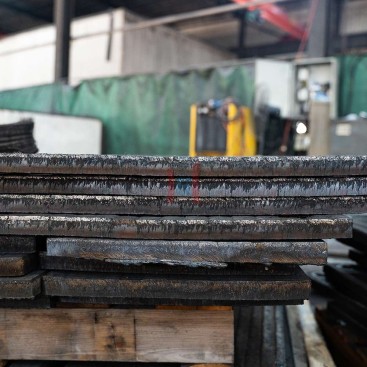

Severe Abrasion Low to Medium Impact Chromium Carbide Overlay Plate with a 4–50mm wear layer is a premium wear-resistant solution designed for extreme abrasion and low to medium impact conditions. It features a high-chromium, high-carbon composite cladding that is fusion bonded to a mild steel base using submerged arc welding (SAW) for maximum durability.
Engineered for demanding applications such as mining, cement, power generation, and steel processing, this overlay plate offers exceptional hardness, extended service life, and resistance to severe wear. It is an ideal choice where superior abrasion protection is required without sacrificing structural support.
Chromium Carbide Overlay Plate( 4-50mm Overlayer Thickness ) Key Benefits:
-
Overlayer thickness: 4mm to 50mm
-
High chromium (Cr) and carbon (C) content
-
Manufactured by submerged arc welding for strong metallurgical bond
-
Excellent performance in high-wear, moderate-impact applications
-
Widely used in hoppers, chutes, liners, and bucket components
Optimize your operations with chromium carbide wear plates built to withstand the toughest environments.
| Production Specifications | Customized wear plates are available |
| Standard plate size(mm) | 1400*3000 1400*3500 2100*3500 |
| Overlayer thickness(mm) | 4~50 |
| Base plate thickness(mm) | 4.5~100 |
| Chemical Composition | Content % |
| C content | 3.0~7.0% |
| Cr content | 25~45% |
| Cr7C3 fraction volume | 30~60% |
| Hardness | 58~65 HRC |
Full Customization Available:
Teda Ganghua provides OEM and custom processing services to meet specific operational needs:
-
Custom Sizes: On-demand cutting to precise dimensions
-
Thickness Options: Overlay thickness from 2mm to 50mm; multi-layer surfacing supported
-
Deep Processing: Drawing-based customization, including drilling, bending, grinding, and plasma cutting
-
High-Temperature Applications: Special overlay formulations for enhanced performance in heat-intensive environments
Teda Ganghua is a trusted supplier of chromium carbide wear plates in China, delivering reliable and cost-effective solutions for tough wear environments. Request a free quote or consultation today.
