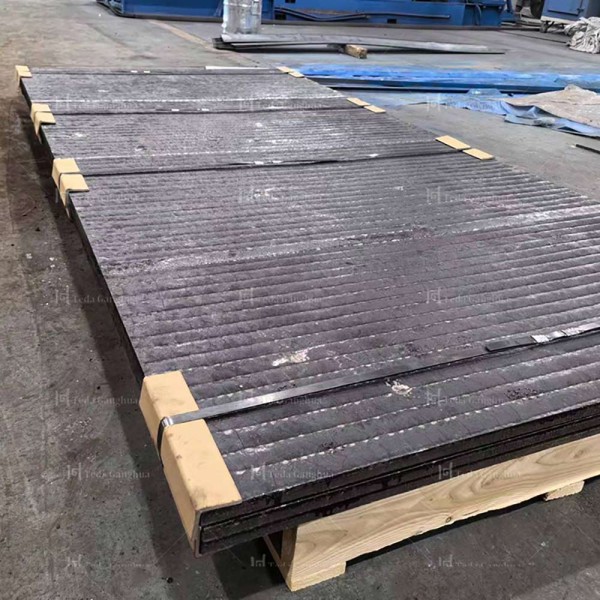

High Abrasion Low to Medium Impact Chromium Carbide Overlay Plate( 2-50mm Overlayer Thickness )

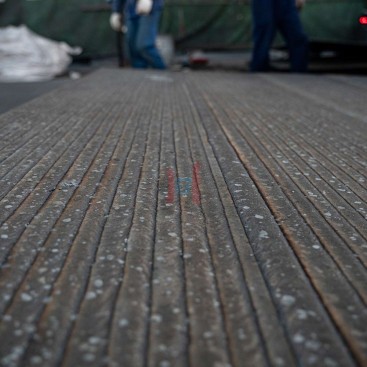

Chromium Carbide Overlay (CCO) Plate with hardness HRC 58–65 is a high-performance wear-resistant steel plate composed of a chromium carbide-rich overlay welded onto a mild steel base. Manufactured using flux-cored arc welding (FCAW), the overlay delivers outstanding protection against severe abrasion withstanding low to medium impact forces.
- Description
High Abrasion Low to Medium Impact Chromium Carbide Overlay Plate Key Features
-
High Hardness: HRC 58–65 for superior wear life
-
Composition: C: 3.0–5.0%, Cr: 18–30%, Cr₇C₃ volume fraction ≈ 30%
-
Overlay Thickness: Wear-resistant layer up to 50mm thick
-
Heat Resistance: Performs reliably in environments up to 600°C
-
Standard Sizes: 1400×3500mm, 1500×3000mm, 2000×3000mm
-
Surface Finish: Excellent flatness and smoother surface
-
Manufacturing Method: Flux-cored arc welded overlay
Applications:
Ideal for mining, cement plants, steel mills, coal handling, and other industries requiring high abrasion resistance under low to moderate impact.
| Production Specifications | Customized wear plates are available |
| Standard plate size(mm) | 1400*3500 1500*3000 2000*3000 |
| Overlayer thickness(mm) | 2~50 |
| Base plate thickness(mm) | 4.5~100 |
| Chemical Composition | Content % |
| C content | 3.0~5.0% |
| Cr content | 18~30% |
| Cr7C3 fraction volume | About 30% |
| Hardness | 58~65 HRC |
Full Customization Available:
Teda Ganghua provides OEM and custom processing services to meet specific operational needs:
-
Custom Sizes: On-demand cutting to precise dimensions
-
Thickness Options: Overlay thickness from 2mm to 50mm; multi-layer surfacing supported
-
Deep Processing: Drawing-based customization, including drilling, bending, grinding, and plasma cutting
-
High-Temperature Applications: Special overlay formulations for enhanced performance in heat-intensive environments
Teda Ganghua is a trusted supplier of chromium carbide wear plates in China, delivering reliable and cost-effective solutions for tough wear environments. Request a free quote or consultation today.
