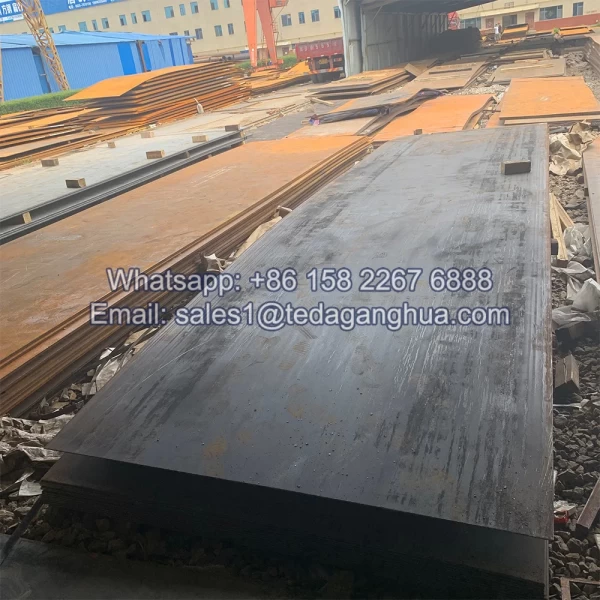

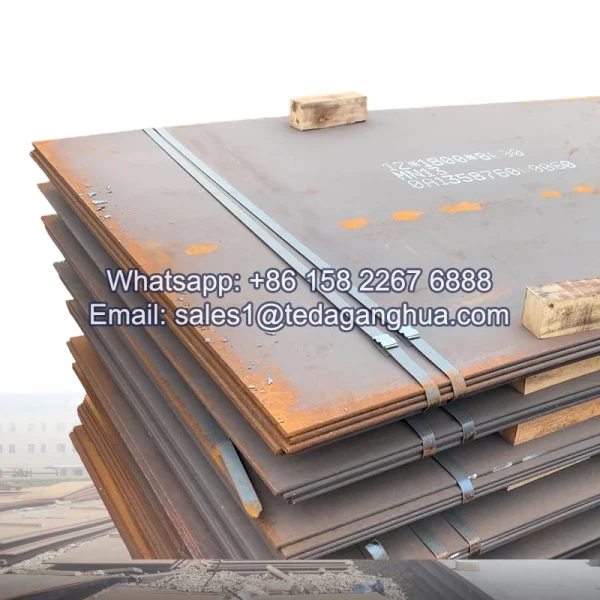

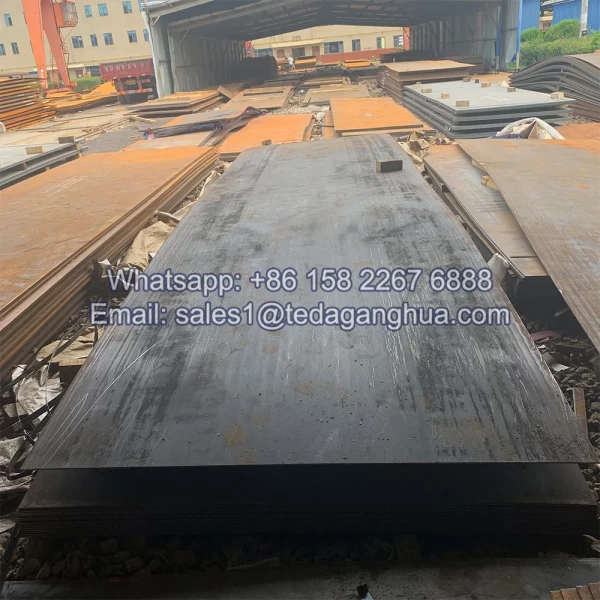

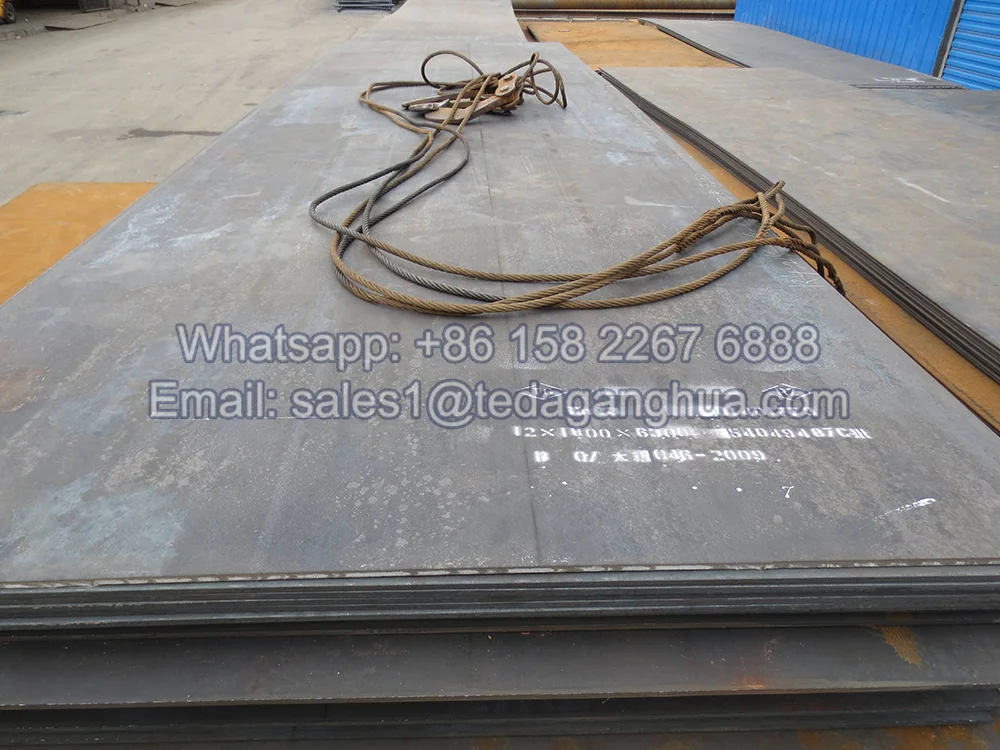

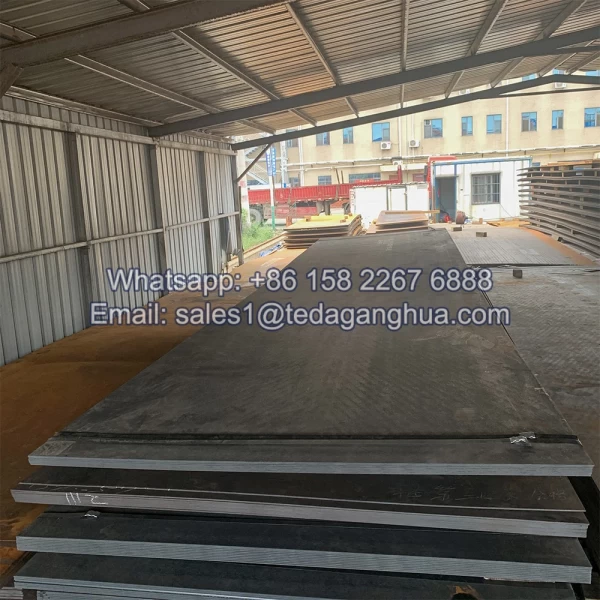

1.3401 Material Steel Plate
1.3401 material is a high manganese austenitic steel with excellent wear resistance and toughness, suitable for high-impact and abrasive applications. It belongs to a broader family of manganese steels including X120Mn12, Mn13, and Hadfield steel, all of which share the key feature of surface work-hardening combined with a tough, ductile core.
- Description
1.3401 is a high manganese austenitic steel widely used for wear-resistant and impact-resistant applications. Its high manganese content stabilizes the austenitic structure, giving it exceptional toughness, strong work-hardening ability, and excellent abrasion resistance.
It is commonly used in heavy-duty environments such as mining, cement, crusher liners, and earth-moving machinery.
Chemical Composition of 1.3401
The chemical composition of 1.3401 is carefully balanced to ensure both wear resistance and toughness:
| Element | Typical Range (wt%) | Function |
|---|---|---|
| Carbon (C) | 1.10 – 1.40 | Increases hardness and surface work-hardening |
| Manganese (Mn) | 11.0 – 14.0 | Austenite stabilization, toughness, wear resistance |
| Silicon (Si) | ≤ 1.0 | Deoxidation, improves strength |
| Phosphorus (P) | ≤ 0.07 | Controlled impurity |
| Sulfur (S) | ≤ 0.03 | Controlled impurity |
| Chromium (Cr) | ≤ 2.0 | Improves hardness and corrosion resistance |
| Nickel (Ni) | ≤ 1.0 | Enhances toughness |
| Iron (Fe) | Balance | Base metal |
Mechanical Properties and Wear Resistance
| Property | Typical Value |
|---|---|
| Yield Strength | 350 – 450 MPa |
| Tensile Strength | 750 – 1100 MPa |
| Elongation | ≥ 35% |
| Hardness (solution treated) | 180 – 220 HB |
| Hardness (work hardened) | Up to 500 HB |
Wear-Resistant Features:
-
Work-hardens under repeated impact
-
Non-magnetic in solution-treated condition
-
High impact toughness and ductility
-
Excellent abrasion resistance after surface hardening
Other Common Manganese Steel Grades
-
X120Mn12 / DIN 1.3401 – European standard high manganese steel for heavy wear and impact applications.
-
Mn13 – Chinese GB standard, similar to X120Mn12, widely used in mining and crushers.
-
Hadfield Steel – Classic manganese steel with 12–14% Mn and 1.0–1.4% C, known for extreme work-hardening.
-
X100Mn12 / Mn12 – Slightly lower carbon content, moderate work-hardening, suitable for chutes and conveyors.
-
X120Mn13 – High manganese steel with enhanced toughness and wear resistance, often used in heavy-duty liners.
Summary Table: Comparison of Manganese Steel Grades
| Grade | Mn Content (wt%) | C Content (wt%) | Hardness (HB) | Main Feature | Applications |
|---|---|---|---|---|---|
| 1.3401 / X120Mn12 | 11–14 | 1.10–1.40 | 180–220 (solution treated) | Work-hardening, high wear resistance | Crusher liners, bucket liners |
| Mn13 | 11–13 | 1.05–1.30 | 170–210 | Similar to X120Mn12 | Mining equipment, impact plates |
| Hadfield Steel | 12–14 | 1.0–1.4 | 180–220 | Classic manganese steel | Jaw plates, grinding mills |
| X100Mn12 | 11–12 | 0.9–1.2 | 160–200 | Moderate hardness | Chutes, conveyors |
| X120Mn13 | 11–14 | 1.2–1.4 | 180–220 | Enhanced toughness | Heavy-duty liners, hoppers |
