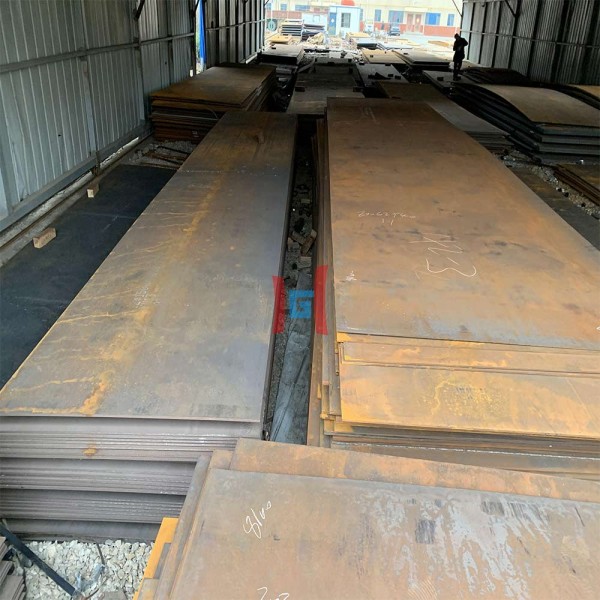

NM400 NM500 Material in Wear Resistance Steel Plates
Grade: NM360, NM400, NM450, NM500, NM550, NM600
Thickness: 3-80mm
Width: 1250mm, 1500mm, 1800mm, 2000mm, 2200mm
Length: 6000mm, 8000mm, 10000mm, or cut to required.
- Description
Wear resistant steel are produced from processes of hot rolling, cutting into length and heat treating. The products are characterized with small thickness, good flatness, outstanding wear resistance, excellent toughness, good weldability, good machinablility, consistent property and quality.
Wear resistant steels are developed for applications where high wear resistant performance is required, such as dumper, garbage vehicle, concrete mixer truck, industrial air fan, hopper, crusher, machinery for coal, grain, cement, grab bucket, etc.
NM400 Plates are used in various applications like Civil engineering, buildings, and structures, industrial machinery, edge of loaders in the loader industry, wear-resistant lining plate in the crusher industry, slat type conveyors in colliery mechanical industry, lining plates of coal pulverizer in the power industry, lining plate of hopper for heavy handling truck, and various other applications that require long duration, low weight, high performance, and excellent weldability.
|
Chemical Composition,/% |
|||||||||||
|
Grade |
C |
Si |
Mn |
P |
S |
Cr |
Ni |
Mo |
Ti |
B |
AlS |
|
≤ |
Range |
≥ |
|||||||||
|
NM360 |
0.25 |
0.70 |
1.60 |
0.025 |
0.015 |
0.80 |
0.50 |
0.50 |
0.05 |
0.0005-0.006 |
0.01 |
|
NM400 |
0.30 |
0.70 |
1.60 |
0.025 |
0.010 |
1.00 |
0.70 |
0.50 |
0.05 |
0.0005-0.006 |
0.01 |
|
NM450 |
0.35 |
0.70 |
1.70 |
0.025 |
0.010 |
1.10 |
0.80 |
0.55 |
0.05 |
0.0005-0.006 |
0.01 |
|
NM500 |
0.38 |
0.70 |
1.70 |
0.02 |
0.010 |
1.20 |
1.00 |
0.65 |
0.05 |
0.0005-0.006 |
0.01 |
|
Mechanical Properties |
|||||
|
Grade |
Thickness/mm |
Rm/Mpa |
A50/% |
-20℃KV2/Jitudinal) |
HBW |
|
NM360 |
≤80 |
≥1100 |
≥12 |
≥24 |
330-390 |
|
NM400 |
≤80 |
≥1200 |
≥10 |
≥24 |
370-430 |
|
NM450 |
≤80 |
≥1250 |
≥7 |
≥24 |
420-480 |
|
NM500 |
≤70 |
≥1300 |
≥7 |
≥24 |
480-520 |
Packaging
bundle package; wooden case,wooden pallet package; container or bulk; special according to customer request
