Durable Wear-Resistant Steel Chromium Carbide Overlay Plate
- Description

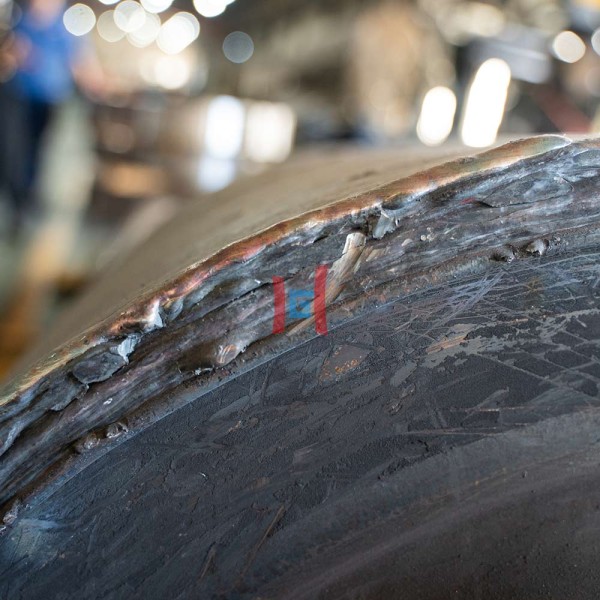

Wear plates manufactured by welding one or multiple wear resistant layers on a medium or low carbon steel base plate.
The overlay alloy has a high amount of chromium carbide hard particles which makes the plate have good wear and impact resistance.
Cost effective solution when compared to traditional abrasion-resistant steels
Recommended for resistance to wear by abrasion, fretting, cavitation, and particle erosion in high temperature applications (up to 1100°F).
Ideal for mild to moderate impact abrasion resistance.
Low maintenance cost and easy installation.
Characteristics of products
(1) 20- 25 times harder than low carbon steel
(2) 5-20 times harder than high manganese steel
(3) 5-10 times harder than tool steel
(4) 1.5-2.5 times harder than high-chromium steel
Application
The Chromium Carbide Overlay Plate finds extensive use in mining equipment, such as drilling bits, cutters, and excavators. Its ability to withstand the demanding conditions of mining environments makes it a popular choice among professionals in the industry. Additionally, its wear resistance and corrosion resistance make it suitable for use in construction equipment, such as bulldozers and backhoes, where it helps extend the lifespan of critical components.
| Product Name | High abrasion wear steel plate |
| Base Plate | Q235/Q345. |
| Hardfacing layer | High chromium high carbide overlay. |
| Chemical Composition | C(%): 3.0-5.0 ,Cr(%): 25-40, Mn(%) 1-5 |
| Microstructure | The carbide (Cr7C3) volume fraction on the microstructure is above 50%. |
| Hardness | HRC58-65. |
| Surface Treatment | Hardfacing,clading,coated. |
| Technique | Hardfacing,open arc welding,submerged arc welding. |
| Main Thicknesses | 3+3,4+4, 5+5 |
| 6+4,6+5,6+6,6+8 | |
| 8+4,8+5,8+6,8+7,8+8 | |
| 10+4,10+5,10+6,10+7,10+8,10+9,10+10,10+20 | |
| 12+4,12+5,12+6,12+7,12+8,12+10,12+11,12+12 | |
| 14+6,14+8,14+10,16+6,16+8,16+10 | |
| 18+6,18+8,18+10,20+5,20+6,20+8,20+10,20+20,30+10,40+10 | |
| Customized. | |
| Plate Size | 1400*3000,1500*3000,1400*3400, 1400*3500, 2100*3500, customized |
| Application | Mining,Steel,Cement,Power,Port,etc. |
Packaging
bundle package; wooden case,wooden pallet package; container or bulk; special according to customer request
