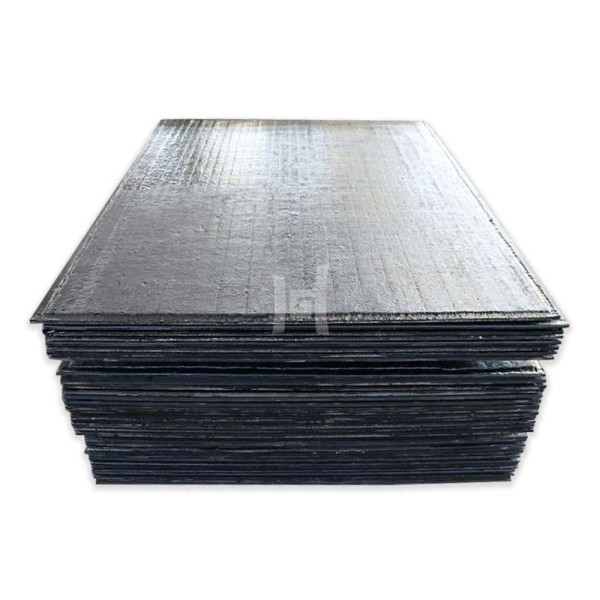

Best in Durability Wear-Resistant Chromium Carbide Overlay Plate
Overlay thickness range: 3-25mm
Wear plate size: 1400*3000,1400*3400, 1400*3500, 2100*3500, customized
- Description
Wear plates manufactured by welding one or multiple wear resistant layers on a medium or low carbon steel base plate.
The overlay alloy has a high amount of chromium carbide hard particles which makes the plate have good wear and impact resistance.
Teda Metal chromium carbide cladded steel plate offers superior strength and corrosion resistance. This bimetallic product starts with a mild steel base plate that is then fused by welding with a chrome carbide steel. Up to 32% chrome (chromium) and up to 5.8% carbon, chromium carbide metallurgically bonds to the steel’s surface to form a protective and durable surface that will not separate from the base metal.
Characteristics of products
(1) 20- 25 times harder than low carbon steel
(2) 5-20 times harder than high manganese steel
(3) 5-10 times harder than tool steel
(4) 1.5-2.5 times harder than high-chromium steel
Application
The Chromium Carbide Overlay Plate finds extensive use in mining equipment, such as drilling bits, cutters, and excavators. Its ability to withstand the demanding conditions of mining environments makes it a popular choice among professionals in the industry. Additionally, its wear resistance and corrosion resistance make it suitable for use in construction equipment, such as bulldozers and backhoes, where it helps extend the lifespan of critical components.
| Product Name | High abrasion wear steel plate |
| Base Plate | Q235/Q345. |
| Hardfacing layer | High chromium high carbide overlay. |
| Chemical Composition | C(%): 3.0-5.0 ,Cr(%): 25-40, Mn(%) 1-5 |
| Microstructure | The carbide (Cr7C3) volume fraction on the microstructure is above 50%. |
| Hardness | HRC58-65. |
| Surface Treatment | Hardfacing,clading,coated. |
| Technique | Hardfacing,open arc welding,submerged arc welding. |
| Main Thicknesses | 3+3,4+4, 5+5 |
| 6+4,6+5,6+6,6+8 | |
| 8+4,8+5,8+6,8+7,8+8 | |
| 10+4,10+5,10+6,10+7,10+8,10+9,10+10,10+20 | |
| 12+4,12+5,12+6,12+7,12+8,12+10,12+11,12+12 | |
| 14+6,14+8,14+10,16+6,16+8,16+10 | |
| 18+6,18+8,18+10,20+5,20+6,20+8,20+10,20+20,30+10,40+10 | |
| Customized. | |
| Plate Size | 1400*3000,1500*3000,1400*3400, 1400*3500, 2100*3500, customized |
| Application | Mining,Steel,Cement,Power,Port,etc. |
Packaging
bundle package; wooden case,wooden pallet package; container or bulk; special according to customer request
