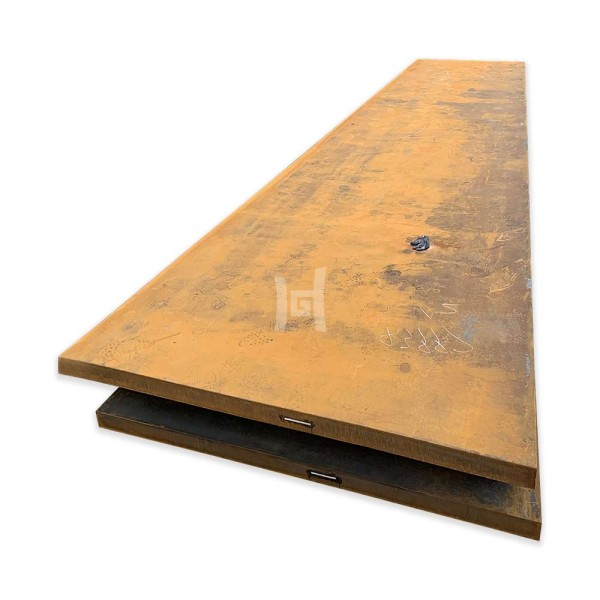

Abrex 500 Plate Thickness Abrasion Resistant Steel Plates

Thickness 5mm to 120mm Abrasion Resistant Steel Plates

AR400/AR450/AR500 abrasion resistant steel plate

ASTM standard AR400/AR450/AR500 abrasion resistant steel plate

Wholesale price wear resiting steel plate nm360 nm400 nm450 nm500 nm550 nm600 Composite wear-resistant plate

Grade: NM360, NM400, NM450, NM500, NM550, NM600
Thickness: 3-80mm
Width: 1250mm, 1500mm, 1800mm, 2000mm, 2200mm
Length: 6000mm, 8000mm, 10000mm, or cut to required.

Category: wear resistant plates

Description

Wear resistant steel are produced from processes of hot rolling, cutting into length and heat treating. The products are characterized with small thickness, good flatness, outstanding wear resistance, excellent toughness, good weldability, good machinablility, consistent property and quality.
Wear resistant steels are developed for applications where high wear resistant performance is required, such as dumper, garbage vehicle, concrete mixer truck, industrial air fan, hopper, crusher, machinery for coal, grain, cement, grab bucket, etc.

NM400 Plates is a high-strength, wear-resistant steel known for its superior durability and toughness. NM400 is a Chinese GB standard steel grade. The NM 400 material is widely used in industries where resistance to abrasion (abrasion resistant) is important, such as in the construction and mining sectors.

Chemical Composition,/%
Grade	C	Si	Mn	P	S	Cr	Ni	Mo	Ti	B	AlS
Grade	≤									Range	≥
NM360	0.25	0.70	1.60	0.025	0.015	0.80	0.50	0.50	0.05	0.0005-0.006	0.01
NM400	0.30	0.70	1.60	0.025	0.010	1.00	0.70	0.50	0.05	0.0005-0.006	0.01
NM450	0.35	0.70	1.70	0.025	0.010	1.10	0.80	0.55	0.05	0.0005-0.006	0.01
NM500	0.38	0.70	1.70	0.02	0.010	1.20	1.00	0.65	0.05	0.0005-0.006	0.01

Mechanical Properties
Grade	Thickness/mm	Rm/Mpa	A50/%	-20℃KV2/Jitudinal)	HBW
NM360	≤80	≥1100	≥12	≥24	330-390
NM400	≤80	≥1200	≥10	≥24	370-430
NM450	≤80	≥1250	≥7	≥24	420-480
NM500	≤70	≥1300	≥7	≥24	480-520
