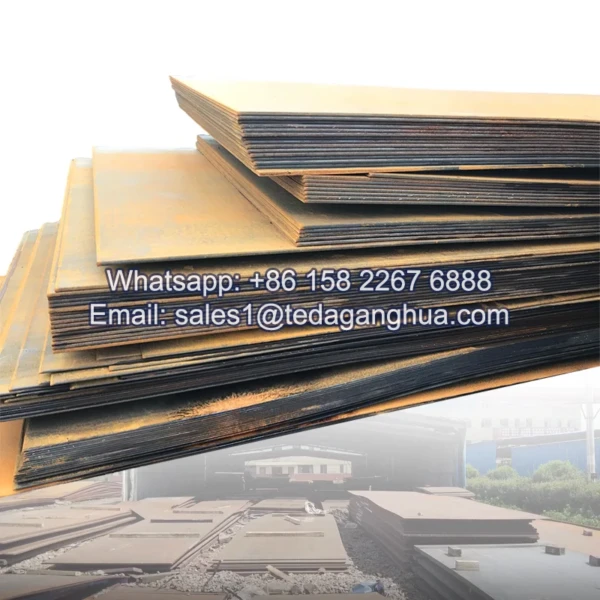

Abrasion Resistant Steel Sheet
Abrasion resistant steel sheet is a specially engineered alloy steel designed for high wear environments. Its performance comes from a combination of carbon, chromium, manganese, molybdenum, and other alloying elements together with controlled heat treatment.
- Description
Abrasion resistant steel sheet is a high-hardness alloy steel designed to resist wear, friction, and impact in harsh industrial environments. It is commonly used in mining equipment, construction machinery, material handling systems, cement plants, and heavy industrial structures where ordinary steel would wear out rapidly.
The excellent wear resistance of abrasion resistant steel mainly comes from its carefully controlled chemical composition and heat treatment process.
1. Chemical Composition of Abrasion Resistant Steel
Abrasion resistant steel typically contains carbon and alloying elements that improve hardness, toughness, and wear performance.
| Element | Typical Function |
|---|---|
| Carbon (C) | Increases hardness and wear resistance |
| Manganese (Mn) | Improves toughness and hardenability |
| Chromium (Cr) | Enhances abrasion and corrosion resistance |
| Molybdenum (Mo) | Improves strength and heat treatment stability |
| Nickel (Ni) | Improves toughness and impact resistance |
| Boron (B) | Enhances hardenability in small quantities |
2. Role of Key Alloying Elements
Carbon (C)
Carbon is the primary element responsible for hardness. Higher carbon content generally increases wear resistance but may reduce weldability if excessive.
Chromium (Cr)
Chromium improves surface hardness and helps resist abrasive wear. It also contributes to oxidation resistance in some environments.
Manganese (Mn)
Manganese enhances toughness and helps maintain strength under impact loading conditions.
Molybdenum (Mo)
Molybdenum improves hardenability and prevents brittleness during heat treatment.
Nickel (Ni)
Nickel increases toughness and improves low-temperature impact performance.
3. Mechanical Performance Characteristics
| Property | Performance |
|---|---|
| Hardness | High (commonly 400–600 HB) |
| Wear Resistance | Excellent |
| Impact Resistance | Good to excellent depending on grade |
| Tensile Strength | High |
| Toughness | Balanced with hardness |
| Service Life | Much longer than ordinary carbon steel |
4. Common Hardness Grades
Abrasion resistant steel sheets are often classified by hardness level.
| Grade | Approximate Hardness | Typical Use |
|---|---|---|
| AR400 | ~400 HB | General wear applications |
| AR450 | ~450 HB | Medium abrasion environments |
| AR500 | ~500 HB | Severe abrasive conditions |
| AR600 | ~600 HB | Extreme wear resistance applications |
Higher hardness usually provides better abrasion resistance but may reduce formability and weldability.
5. Wear Resistance Mechanism
Abrasion resistant steel achieves its performance through:
- Quenched and tempered microstructure
- High surface hardness
- Strong resistance to material removal under friction
- Ability to absorb impact while maintaining hardness
This combination allows the material to resist both sliding abrasion and impact wear.
6. Processing Characteristics
Although highly wear resistant, these steels can still be processed using proper techniques.
Common processing methods:
- Plasma cutting
- Laser cutting
- CNC machining
- Controlled welding
- Bending with large radius tools
Due to high hardness:
- Stronger tooling is required
- Preheating may be needed during welding
- Excessive forming should be avoided on high-hardness grades
7. Common Application Areas
Abrasion resistant steel sheet is widely used in:
- Mining machinery
- Excavator buckets
- Crusher liners
- Dump truck bodies
- Cement handling systems
- Coal processing equipment
- Agricultural wear components
