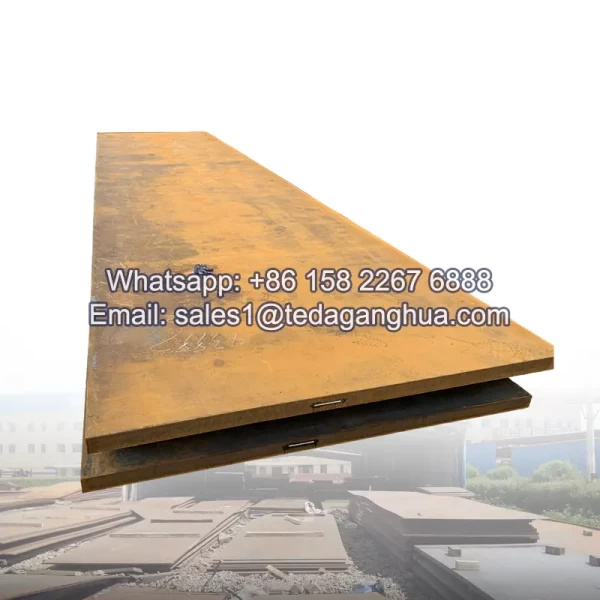

Wear Plate Steel

Wear plate steel refers to a type of steel designed to resist abrasion, impact, and wear under harsh working conditions. Compared with ordinary structural steel, wear plates feature higher hardness, strength, and durability achieved through alloying elements and special heat treatments.
These plates are used as protective layers or liners in machinery and equipment exposed to constant friction or heavy impact, preventing structural damage to the base material and extending service life.

Composition and Properties

Material Composition

Wear plate steel is typically produced using alloyed steel containing elements such as carbon, chromium, manganese, molybdenum, and vanadium. These improve hardness and wear resistance.
Some types are clad or composite wear plates, made by overlaying a hard alloy layer (for example, chromium carbide) on a mild steel base plate to combine hardness with weldability and impact strength.

Hardness and Performance

Hardness is the key performance indicator for wear plates. Common designations such as AR400, AR450, AR500 refer to different hardness levels measured in Brinell Hardness Numbers (BHN).
Higher hardness means better resistance to sliding abrasion, but it may reduce toughness and weldability. Therefore, the balance between hardness and ductility must be carefully selected based on the application.

Typical Dimensions

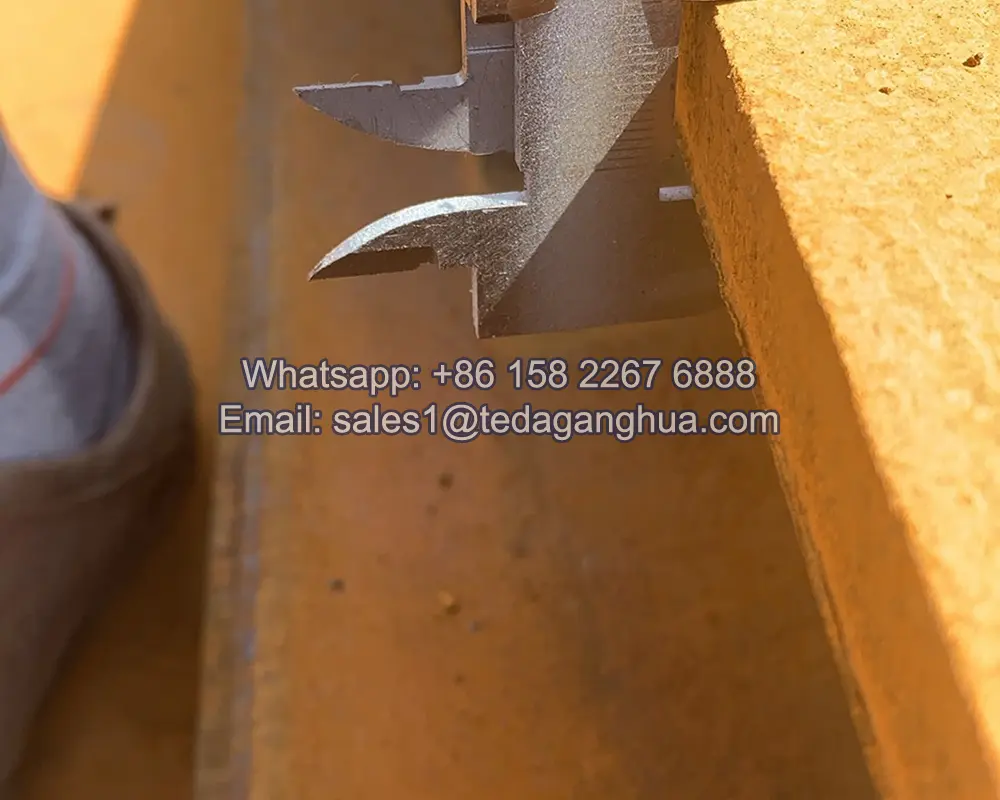

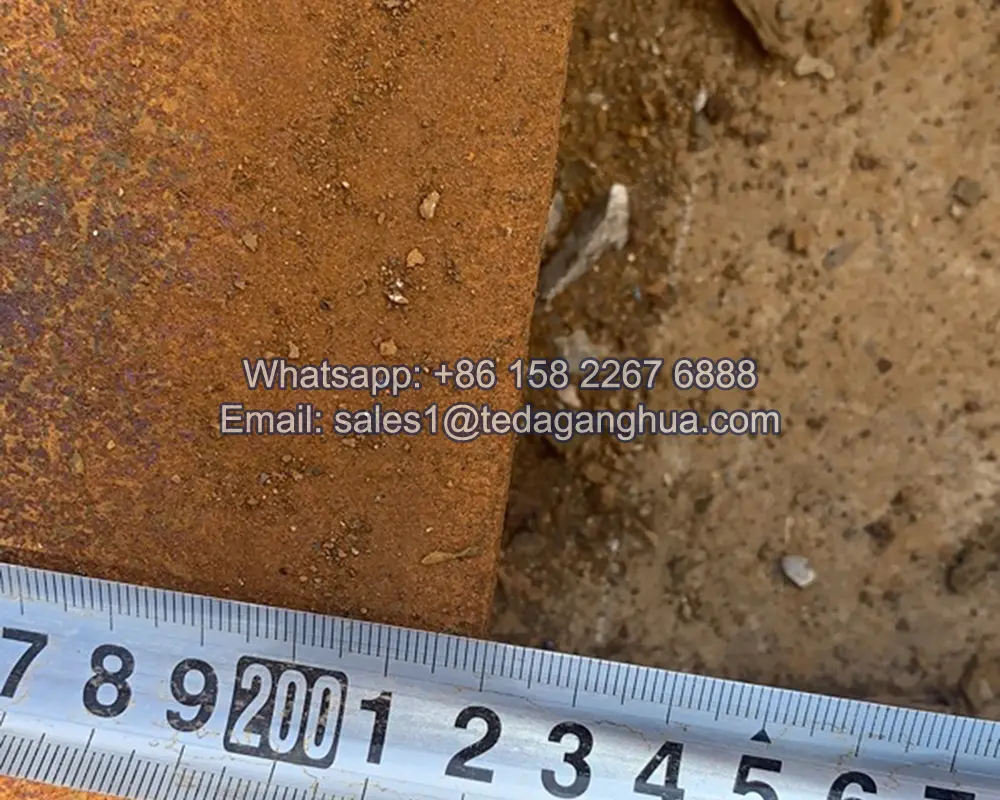

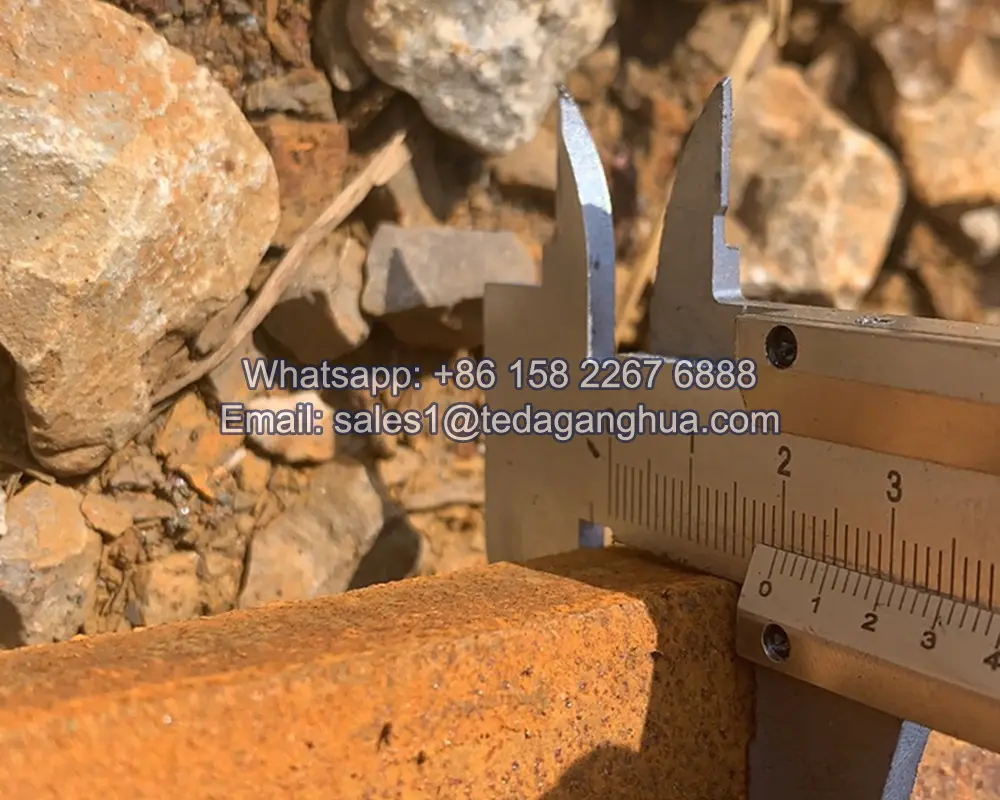

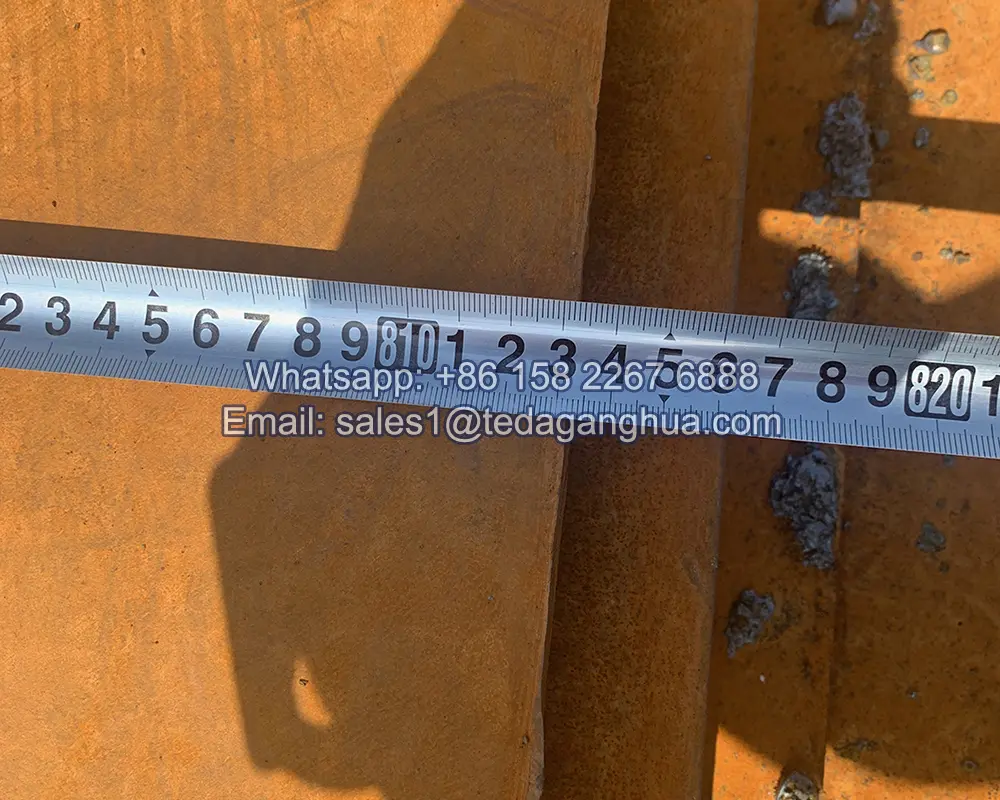

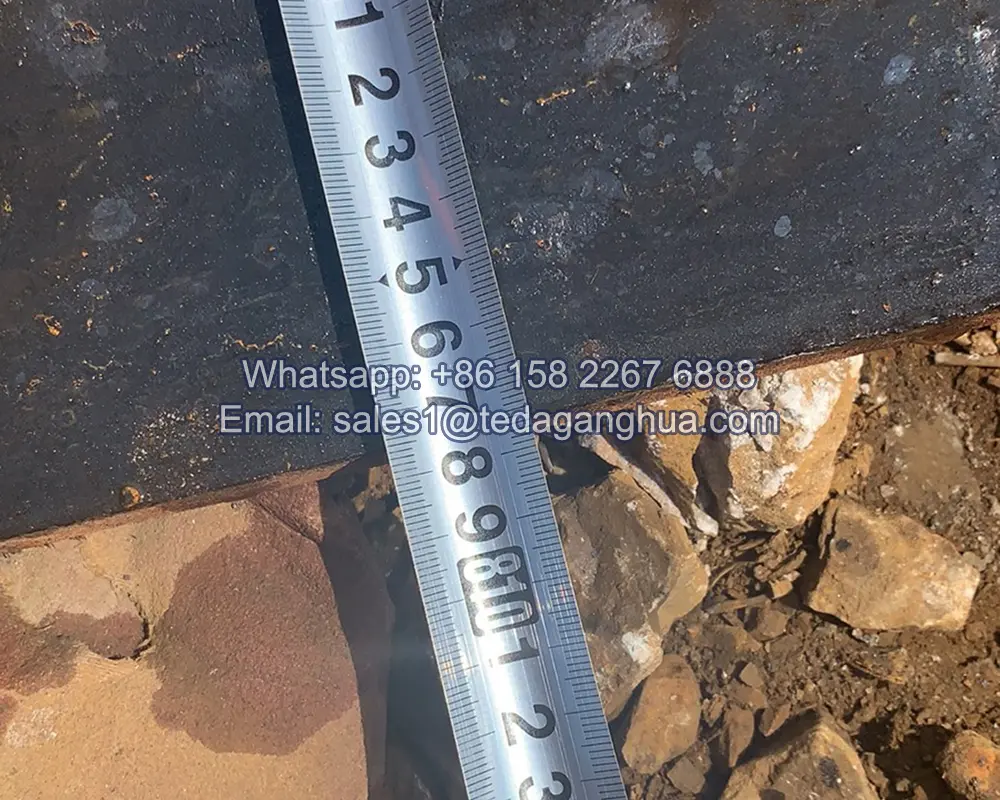

Wear plates are available in a wide range of thicknesses—from a few millimeters up to several tens of millimeters. They can be supplied as flat sheets, cut-to-size liners, or fabricated components ready for installation.

Main Applications of Wear Plate Steel

Wear plate steel is used in industries that face high abrasion and material flow. Common applications include:

• Mining and Quarrying: Crusher liners, screen plates, hoppers, chutes, and dump truck bodies.

• Construction and Earthmoving: Bulldozer blades, excavator buckets, loader bucket bottoms, and wear strips.

• Material Handling and Conveying Systems: Bins, feeders, conveyor chutes, transfer points, and liners.

• Cement, Steel, and Recycling Plants: Components exposed to high wear, such as mixers, mills, and separators.

Using wear plate steel greatly reduces equipment downtime, maintenance frequency, and overall operational costs by protecting critical components from early wear.

How to Select the Right Wear Plate Steel

1. Type of Wear

Identify the dominant wear mechanism:

• Sliding abrasion: requires higher hardness materials such as AR450–AR500.

• Impact abrasion: needs a balanced grade with both hardness and toughness.

2. Hardness Level

• AR400: suitable for moderate abrasion and good machinability.

• AR450–AR500: ideal for heavy wear environments where impact is also expected.

3. Fabrication and Welding

Higher hardness grades are more difficult to cut, bend, or weld. Preheating and controlled welding procedures are recommended to prevent cracking or distortion.

4. Cost–Performance Balance

While high-hardness plates cost more initially, their long service life reduces replacement frequency and downtime, resulting in lower total cost of ownership.

5. Environmental Conditions

In high-temperature, corrosive, or cyclic environments, specialized wear-resistant steels with added heat or corrosion resistance should be selected.

Installation and Maintenance Tips

• Ensure proper fit and secure installation to avoid stress concentration.

• Regularly inspect wear liners in areas of direct material impact or sliding contact. Replace when wear depth exceeds design limits.

• Design replaceable liners with bolted or modular connections to simplify maintenance.

• In welding operations, apply preheating and post-heat treatment as required by the steel grade.

• For extreme wear or high-impact conditions, consider composite wear plates or chromium-carbide overlays.
