Bimetallic Wear Plate

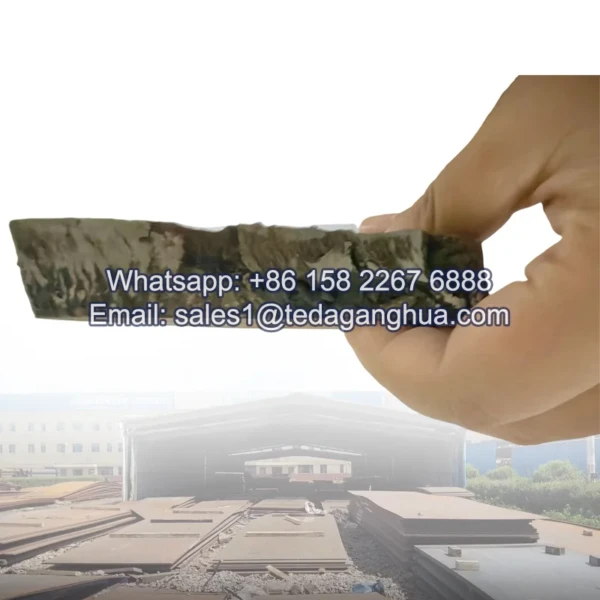

Bimetallic Wear Plate is a composite wear-resistant material made by bonding two different metals together, typically a tough carbon steel base plate and a high-hardness wear-resistant overlay layer. This structure combines the strength and impact resistance of steel with the extreme wear resistance of alloyed surface materials.

It is widely used in mining, cement production, steel plants, power generation, and bulk material handling industries where both abrasion resistance and structural toughness are required.

Material Structure

A bimetallic wear plate consists of two key layers:

• Base Layer: Carbon steel or low-alloy steel for structural strength and impact resistance
• Wear Layer: High-hardness alloy overlay for abrasion and erosion resistance

The two layers are metallurgically bonded, ensuring strong adhesion and long service life under harsh operating conditions.

Chemical Composition of Wear Layer

The surface wear layer varies depending on the overlay type, but commonly includes high-chromium carbide alloys.

Element	Typical Content (%)	Function
Chromium (Cr)	20–35	Forms hard carbides for wear resistance
Carbon (C)	3–5	Combines with chromium to form carbide phases
Iron (Fe)	Balance	Matrix material
Manganese (Mn)	Small amount	Improves toughness
Silicon (Si)	Small amount	Stabilizes welding process

These elements form extremely hard carbide compounds such as Cr₇C₃ and Cr₂₃C₆, which are responsible for high abrasion resistance.

Base Metal Composition

Element	Content (%)
Carbon (C)	≤0.25
Manganese (Mn)	0.5–1.5
Silicon (Si)	≤0.5
Iron (Fe)	Balance

The base steel provides ductility and impact resistance, preventing brittle failure of the hard surface layer.

Performance Characteristics

High Wear Resistance

The hard overlay layer provides excellent resistance to sliding abrasion, particle erosion, and material impact wear.

Good Impact Resistance

The base steel absorbs mechanical shock and vibration, making the material suitable for combined wear and impact environments.

Strong Bonding Strength

The metallurgical bonding between layers ensures no delamination under normal working conditions.

Extended Service Life

Compared with traditional steel plates, bimetallic wear plates significantly extend operational life in harsh industrial environments.

Common Types of Bimetallic Wear Plates

1. Chromium Carbide Overlay (CCO) Plate

• Most common type
• Extremely high hardness (55–65 HRC)
• Best for severe abrasion environments

2. Tungsten Carbide Overlay Plate

• Higher hardness than CCO
• Excellent for extreme wear conditions
• Higher cost and more specialized applications

3. Ceramic-Embedded Wear Plate

• Ceramic particles embedded in metal matrix
• Outstanding abrasion resistance
• Used in high-speed particle erosion environments

4. Mn-Based Impact Wear Plate

• High manganese steel base
• Strong work-hardening capability
• Suitable for high-impact environments

5. Multi-Layer Composite Wear Plate

• Combination of multiple alloy layers
• Designed for mixed wear conditions
• Customized for specific industrial applications

Performance Comparison of Types

Type	Abrasion Resistance	Impact Resistance	Typical Use
CCO Plate	Very High	Medium	Mining, cement
Tungsten Carbide Plate	Extremely High	Medium–Low	Severe abrasion zones
Ceramic Wear Plate	Very High	Low–Medium	Particle erosion systems
Mn Steel Plate	Medium	Very High	High-impact equipment
Multi-Layer Plate	Adjustable	Adjustable	Complex working conditions

Typical Applications

Bimetallic wear plates are widely used in:

• Mining and quarrying equipment
• Cement plant chutes and liners
• Coal handling systems
• Power plant ash handling systems
• Steel plant conveyors and hoppers
• Excavator buckets and dump trucks
• Crusher and screening systems
• Bulk material transfer systems
