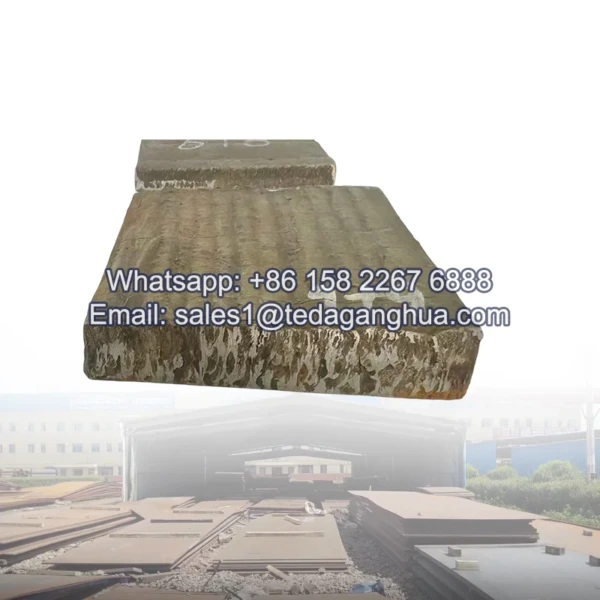

Hardfacing Plate

Hardfacing Plate is a type of wear-resistant steel product produced by depositing a high-hardness alloy layer onto a carbon steel or low-alloy steel base through a welding overlay process. It is widely used in mining, cement, steel production, power plants, and bulk material handling systems where severe abrasion and impact occur.

The key advantage of hardfacing plate lies in its engineered surface layer, which is specifically designed to resist wear while maintaining structural toughness through the base metal.

Structure of Hardfacing Plate

A typical hardfacing plate consists of two functional layers:

• Base Steel Layer: Provides toughness, ductility, and structural support
• Hardfacing Layer (Overlay): Provides extreme wear resistance through alloy carbides or martensitic structures

These two layers are metallurgically bonded to ensure long-term stability under mechanical stress.

Wear Resistance Mechanism

The wear resistance of hardfacing plate is achieved through multiple reinforcing mechanisms working together.

1. Hard Carbide Reinforcement

In chromium carbide-based hardfacing systems, elements such as chromium and carbon form extremely hard carbide phases, including:

• Cr₇C₃
• Cr₂₃C₆

These carbide particles act as hard barriers that resist cutting, grinding, and gouging from abrasive materials.

2. High Hardness Surface Layer

The overlay layer typically reaches:

• 55–65 HRC hardness range
• Extremely high microhardness in carbide-rich regions

This hardness significantly reduces material loss caused by friction and particle impact.

3. Dual-Phase Structure

The hardfacing layer often consists of:

• Hard carbide phases (wear-resistant)
• Tough metallic matrix (supporting structure)

This dual-phase structure provides both hardness and controlled toughness.

4. Energy Absorption by Base Plate

The underlying steel plate plays a critical role:

• Absorbs impact energy
• Prevents cracking of brittle surface layer
• Provides structural integrity under heavy loads

Types of Wear Mechanisms Resisted

Hardfacing plates are designed to resist multiple industrial wear conditions:

• Sliding abrasion (material scraping over surface)
• Impact abrasion (falling or striking materials)
• Erosive wear (high-speed particle flow)
• Gouging wear (large particle cutting)

Microstructural Wear Principle

The wear resistance is achieved through:

• Formation of hard alloy carbides within the overlay
• Uniform distribution of wear-resistant phases
• Strong metallurgical bonding between base and overlay
• Controlled dilution between weld metal and base steel

Performance Comparison Mechanism

Material Type	Wear Resistance Mechanism	Key Advantage
Hardfacing Plate	Carbide reinforcement + hard overlay	Extremely high abrasion resistance
Wear Resistant Steel	Bulk hardness (quenched structure)	Balanced wear + impact resistance
Mild Steel	No reinforcement	Low cost, low durability

Advantages in Industrial Use

• Significantly extended service life
• Reduced maintenance and downtime
• High resistance to abrasive materials
• Adaptable to different wear environments
• Customizable overlay composition

Typical Applications

Hardfacing plates are widely used in:

• Mining chutes and liners
• Cement plant equipment
• Coal handling systems
• Power plant ash systems

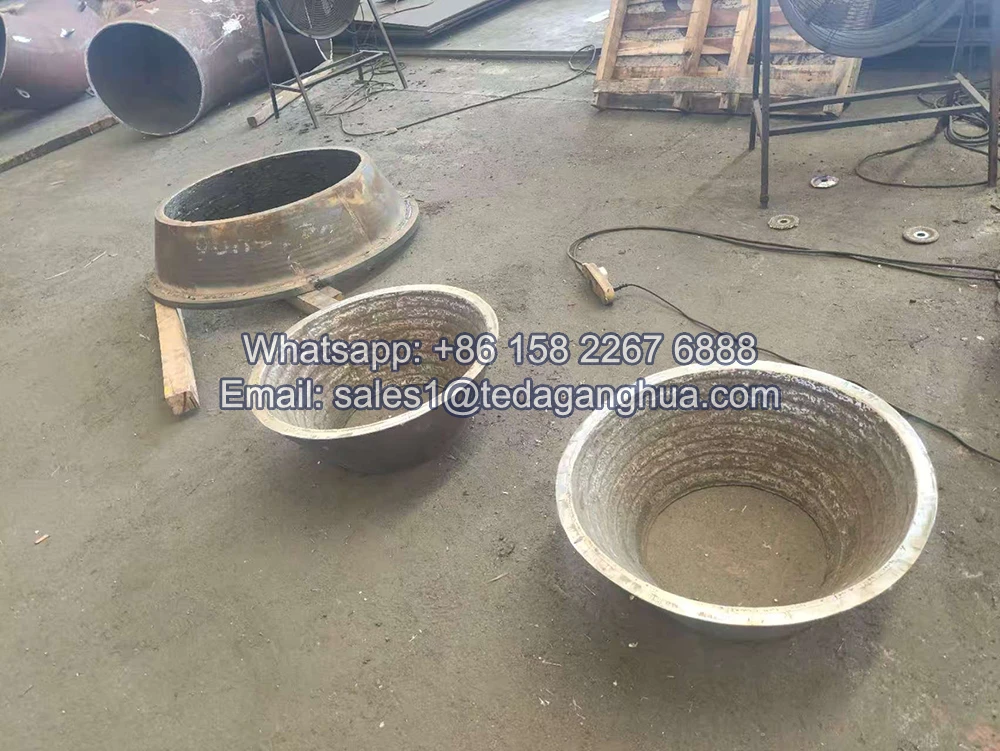

• Crusher liners and hoppers
• Steel mill wear parts

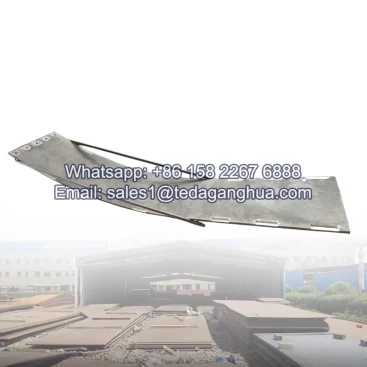

• Excavator buckets
• Bulk material transfer systems
