Cco Overlay
Chromium-containing welding wire is essential in CCO Overlay because it forms hard chromium carbide structures that provide excellent wear resistance. Without chromium, the overlay layer would lose its hardness and durability.
- Description

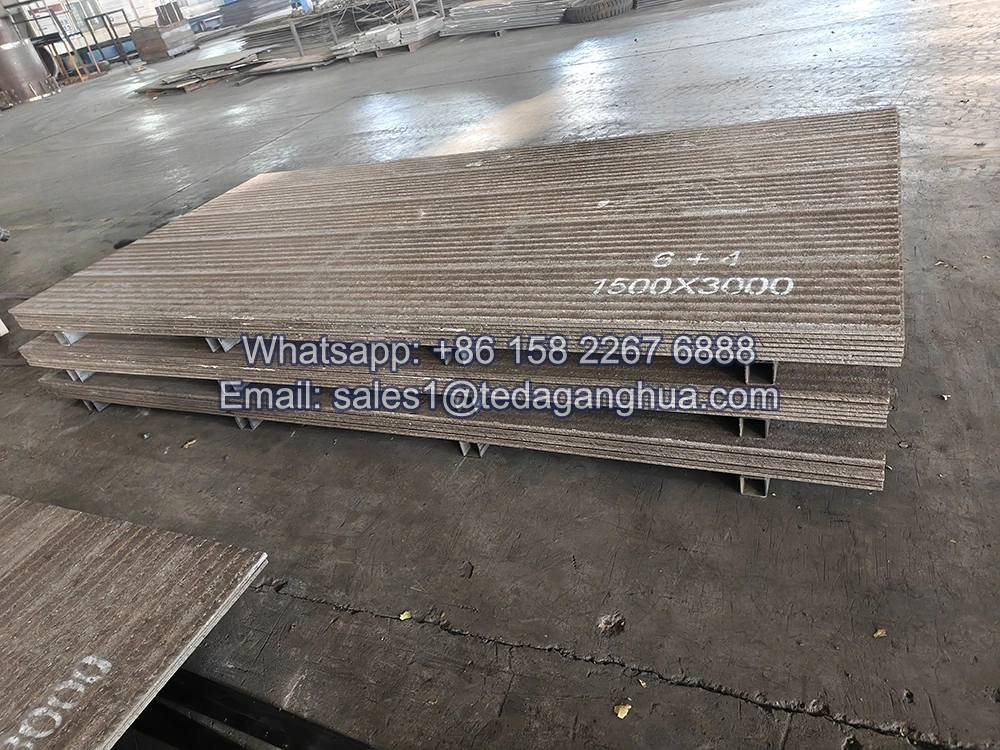

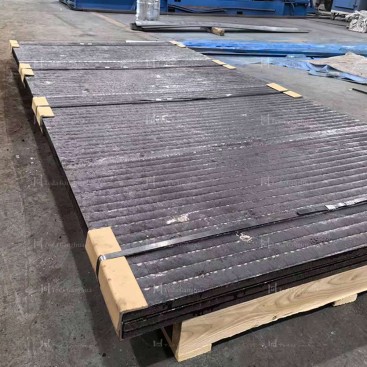

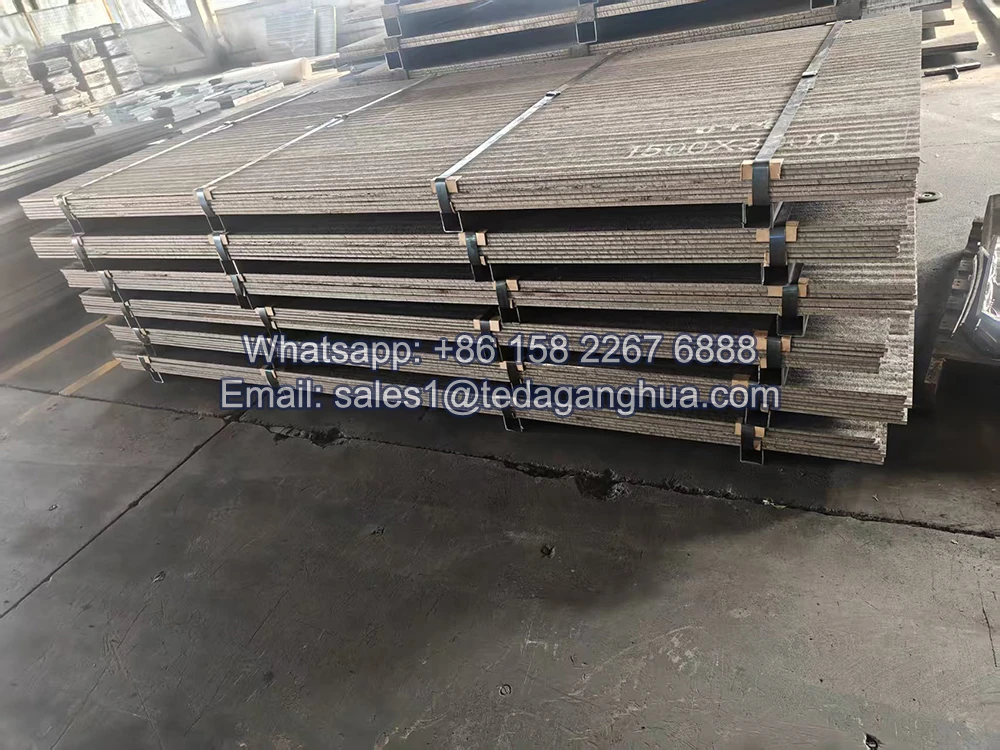

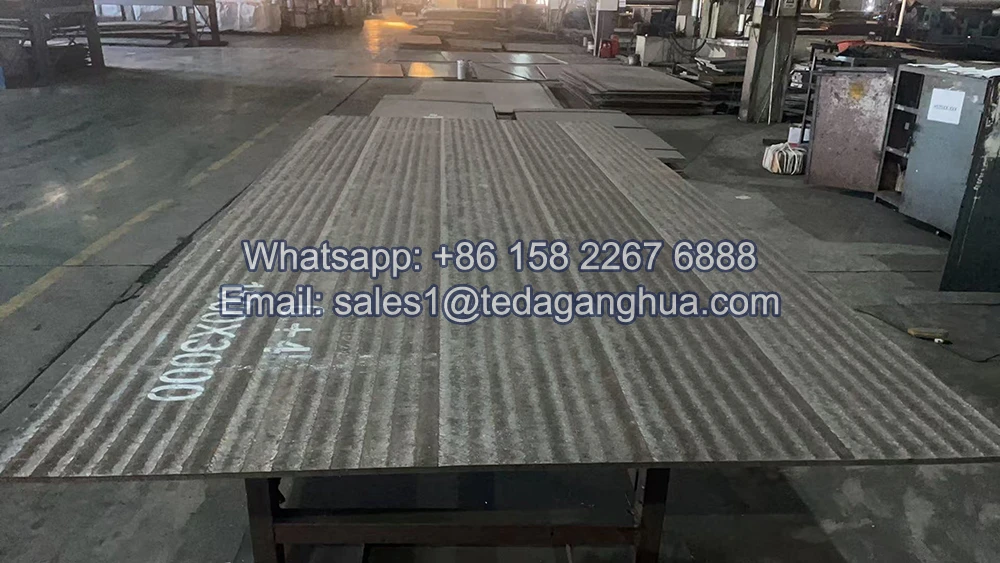

CCO Overlay (Chromium Carbide Overlay) is a wear-resistant hardfacing layer produced by welding a chromium-rich alloy onto a steel base plate. It is widely used in heavy industrial environments where severe abrasion and impact occur.
The key reason for using chromium-containing welding wire is to create hard carbide structures that significantly improve wear resistance.
Why Chromium-Containing Welding Wire Is Used
Chromium is the most important element in CCO overlay welding because it directly determines the formation of wear-resistant phases.
1. Formation of Hard Carbides
During welding, chromium reacts with carbon to form extremely hard carbide particles such as:
- Chromium carbide (Cr₇C₃)
- Complex chromium-rich carbides
These hard particles are the main source of wear resistance in the overlay layer.
2. Increase in Surface Hardness
Higher chromium content increases the number of carbide particles in the microstructure, which significantly improves surface hardness and resistance to abrasion.
3. Improved Wear Resistance
The carbide structure created by chromium allows the overlay layer to resist:
- Sliding abrasion
- High-impact particle erosion
- Continuous material flow wear
This makes the material suitable for extreme industrial conditions.
4. Stability Under Harsh Conditions
Chromium also improves oxidation resistance and microstructural stability, allowing the overlay layer to maintain performance under heat and corrosive environments.
Main Functions and Applications of CCO Overlay
Because of its high wear resistance, CCO overlay is widely used in industries where material loss is severe.
1. Mining Industry
- Chute liners
- Hopper surfaces
- Conveyor wear parts
- Ore handling equipment
2. Cement Industry
- Clinker chutes
- Grinding mill liners
- Cyclone separators
- Material transfer systems
3. Power Plants
- Coal handling systems
- Ash hoppers
- Pulverized coal pipes
4. Steel and Metallurgy Industry
- Sintering equipment
- Slag handling systems
- Material conveying equipment
5. Bulk Material Handling
- Buckets and loader liners
- Wear plates in transfer stations
- Heavy-duty industrial chutes
Key Advantages of Chromium-Based Overlay
- Extremely high wear resistance
- Long service life in harsh environments
- Reduced maintenance and replacement frequency
- Strong metallurgical bonding with base steel
- Suitable for high-impact and high-abrasion conditions
