Surfacing Wear Plate Alloy Design: Chromium Carbide vs Complex Carbide vs Tungsten Carbide Overlay Systems

The performance of surfacing wear plates is fundamentally determined by alloy design and microstructure control. Different carbide systems provide different combinations of hardness, toughness, impact resistance, and abrasion performance.

Among industrial wear-resistant overlay systems, three major alloy categories dominate demanding applications:

• High chromium carbide alloy systems
• Complex carbide alloy systems
• Tungsten carbide reinforced alloy systems

This guide explains the metallurgical structure, carbide formation mechanism, hardness range, and ASTM G65 abrasion performance differences between these advanced overlay solutions.

1. Why Alloy Design Determines Wear Plate Performance

A surfacing wear plate is not simply a hard metal layer. Its service life depends on the relationship between hard carbide particles and the supporting metal matrix.

An optimized overlay structure requires:

• High hardness carbide phases to resist cutting abrasion
• Tough metallic matrix to absorb impact energy
• Strong metallurgical bonding with the base steel
• Uniform carbide distribution for stable wear behavior

The wrong alloy selection can result in either premature wear or brittle cracking under impact conditions.

2. High Chromium Carbide Overlay System: The Industrial Standard

High chromium carbide overlay is the most widely used wear-resistant alloy system for mining, cement, steel, and bulk material handling industries.

Its typical microstructure consists of:

Microstructural Component	Function
Primary M₇C₃ Chromium Carbides	Provide high abrasion resistance
Austenite/Martensite Matrix	Supports carbide particles and improves toughness
Iron-based Bonding Phase	Provides metallurgical connection

Typical Performance Range

• Hardness: HRC 55-62
• Excellent resistance to sliding abrasion
• Good balance between hardness and toughness
• Cost-effective for large-area wear protection

Typical applications include:

• Mining truck liners
• Cement chute liners
• Crusher protection plates
• Conveyor wear components
• Hopper liners

3. Complex Carbide Overlay System: Multi-Element Wear Protection

Complex carbide systems improve conventional chromium carbide technology by adding multiple carbide-forming elements.

Common reinforcement phases include:

• Chromium carbide (CrC)
• Niobium carbide (NbC)
• Vanadium carbide (VC)

Microstructure Characteristics

Phase	Performance Contribution
CrC	Main abrasion-resistant carbide phase
NbC	Improves high-temperature stability and carbide refinement
VC	Creates extremely hard fine carbide particles

Typical Performance Range

• Hardness: HRC 58-65
• Improved wear resistance compared with standard CrC systems
• Better performance under combined abrasion and impact
• Higher temperature stability

Complex carbide overlays are commonly selected for:

• High-temperature conveying systems
• Steel plant equipment
• Power plant wear components
• Cement kiln systems

4. Tungsten Carbide Overlay System: Extreme Wear Resistance

Tungsten carbide reinforced overlays represent one of the highest-performance wear protection technologies available.

The typical structure contains:

Component	Role
WC/W₂C Hard Particles	Provide extreme hardness and cutting resistance
Nickel-Based Binder Phase	Provides toughness and particle support
Metallurgical Bond Layer	Ensures coating attachment

Typical Performance Range

• Hardness: HRC 60-68
• Outstanding erosion resistance
• Excellent performance in severe abrasion environments
• Higher cost compared with chromium carbide systems

Typical applications:

• Oil and gas drilling equipment
• Mining cutting tools
• Extreme erosion components
• High-speed material flow systems

5. Alloy System Comparison: Microstructure and Performance

Alloy System	Main Carbide Phase	Matrix	Hardness	Main Advantage
High Chromium Carbide	M₇C₃	Austenite/Martensite	HRC 55-62	Best cost-performance balance
Complex Carbide	CrC + NbC + VC	Alloy matrix	HRC 58-65	Higher wear resistance and stability
Tungsten Carbide	WC/W₂C	Nickel alloy binder	HRC 60-68	Extreme abrasion protection

6. ASTM G65 Abrasion Test Performance Comparison

ASTM G65 dry sand rubber wheel testing is widely used to evaluate abrasion resistance of wear-resistant materials.

Material System	ASTM G65 Wear Resistance Level	Typical Wear Behavior
Standard Chromium Carbide Overlay	High	Excellent sliding abrasion resistance
Complex Carbide Overlay	Very High	Lower volume loss under severe abrasion
Tungsten Carbide Overlay	Extreme	Superior resistance against cutting erosion

7. How to Select the Right Overlay Alloy

Operating Condition	Recommended Alloy
Large-area mineral abrasion	Chromium carbide overlay
Abrasion + moderate impact	Complex carbide overlay
Extreme erosion and cutting wear	Tungsten carbide overlay
High-temperature abrasion	Complex carbide with Nb/VC modification

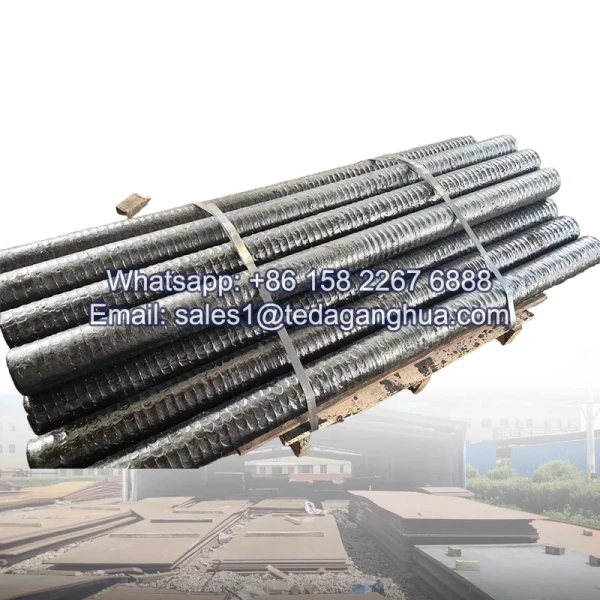

8. Teda Ganghua Wear Plate Solutions

Teda Ganghua supplies advanced chromium carbide overlay plates designed for severe industrial wear environments.

Our solutions include:

• High chromium carbide overlay plates
• Complex alloy wear-resistant plates
• Customized overlay thickness and hardness options
• CNC cutting and fabrication services
• Engineering-based material selection support

With optimized alloy design and strict production control, Teda Ganghua helps customers extend equipment life and reduce maintenance costs in mining, cement, steel, and energy industries.

Learn more:

Chromium Carbide Overlay Plate

Conclusion

Chromium carbide, complex carbide, and tungsten carbide overlay systems each serve different wear conditions. Chromium carbide provides the best overall value, complex carbide offers enhanced protection for demanding environments, and tungsten carbide delivers maximum performance where extreme abrasion resistance is required.

Selecting the correct alloy system based on wear mechanism, temperature, and impact conditions is the key to achieving maximum service life from surfacing wear plates.
