Chromium Carbide Overlay Plate
Chromium Carbide Overlay Plate and wear resistant steel plates are both designed for wear protection but serve different engineering needs. CCO plates provide extreme abrasion resistance due to their hard chromium carbide surface, making them ideal for high-wear, low-impact environments. Wear resistant steel plates, on the other hand, offer a more balanced combination of hardness and toughness, making them suitable for applications involving both impact and abrasion.
- Description

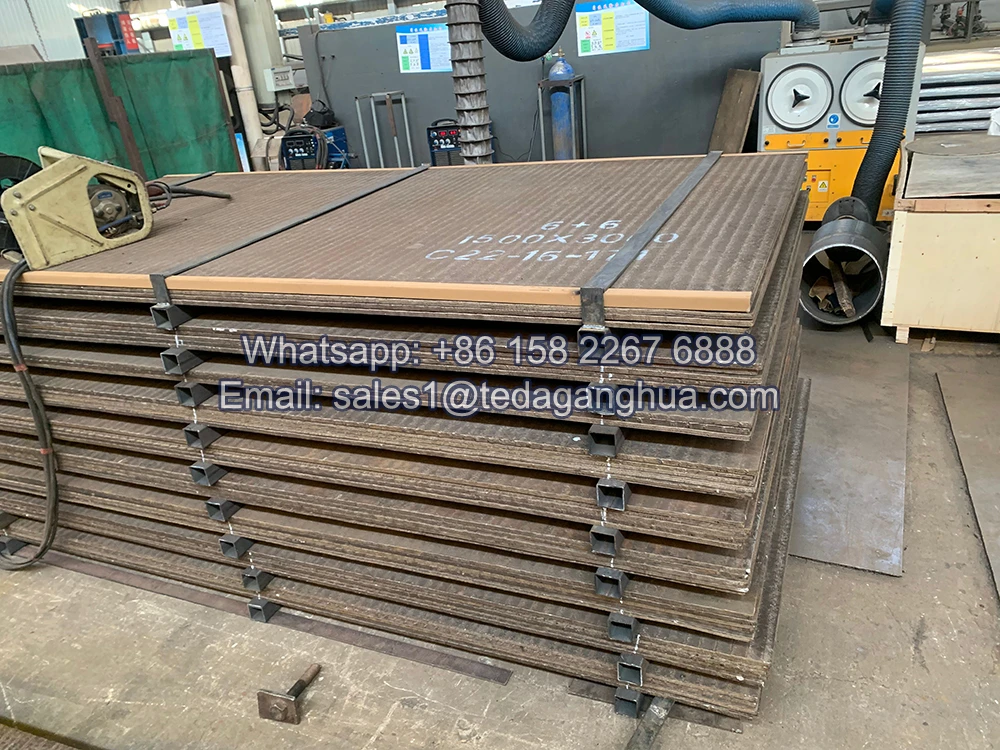

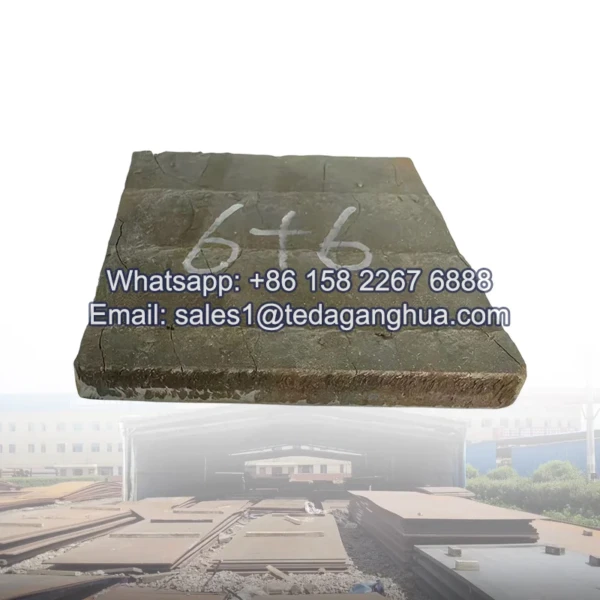

Chromium Carbide Overlay Plate (CCO Plate) is a composite wear-resistant material produced by welding a high-chromium carbide alloy layer onto a steel base plate. It is widely used in heavy wear environments such as mining, cement plants, power stations, and bulk material handling systems.
A common technical question in industry applications is the difference between Chromium Carbide Overlay Plate and traditional wear-resistant steel plates.
Material Structure Difference
Chromium Carbide Overlay Plate (CCO Plate)
CCO plate is a bimetallic composite material:
- Top Layer: High-hardness chromium carbide alloy (weld overlay)
- Base Layer: Mild steel or low-carbon steel
The two layers are metallurgically bonded.
Wear Resistant Steel Plate (AR Steel)
Wear resistant steel (such as AR400, AR500, NM series) is:
- A single homogeneous alloy steel
- Hardness is achieved through quenching and tempering
- No separate overlay layer
Composition and Hardness Comparison
| Property | CCO Plate | Wear Resistant Steel |
|---|---|---|
| Material Type | Composite (overlay + base) | Homogeneous steel |
| Main Alloying Element | High Chromium + Carbon | Carbon + Manganese + Boron |
| Hardness | 55–65 HRC (surface layer) | 360–550 HB |
| Structure | Hard surface + tough base | Uniform hardness throughout |
| Wear Resistance | Extremely high | High |
Wear Resistance Mechanism
Chromium Carbide Overlay Plate
The wear resistance comes from:
- Hard chromium carbide particles (Cr₇C₃, Cr₂₃C₆)
- Extremely hard surface layer
- Resistance to cutting, grinding, and abrasion
Wear Resistant Steel
The wear resistance is achieved through:
- Martensitic microstructure
- Overall hardness of the entire plate
- Balanced toughness and wear resistance
Impact Resistance Comparison
| Property | CCO Plate | Wear Resistant Steel |
| Impact Resistance | Medium | High |
| Crack Resistance | Lower under heavy impact | Better |
| Shock Absorption | Base steel only | Whole plate supports load |
Wear resistant steel performs better in high-impact conditions, while CCO plate is optimized for high abrasion environments.
Service Life Performance
- CCO Plate: Longer service life in severe abrasion conditions such as sliding wear and particle erosion
- Wear Resistant Steel: More balanced performance in mixed impact and abrasion conditions
Typical Applications Comparison
Chromium Carbide Overlay Plate Applications
- Cement chutes and liners
- Mining conveyor systems
- Coal handling equipment
- Power plant ash systems
- Crusher liners
- Heavy abrasion transfer points
Wear Resistant Steel Applications
- Excavator buckets
- Dump truck bodies
- Loader blades
- Structural wear components
- Mining equipment subjected to impact loads
Processing and Fabrication Difference
| Process | CCO Plate | Wear Resistant Steel |
| Cutting | Difficult (hard surface layer) | Easier |
| Welding | Requires special procedure | Standard welding possible |
| Forming | Limited flexibility | Good formability |
| Machining | Very difficult | Relatively easier |
