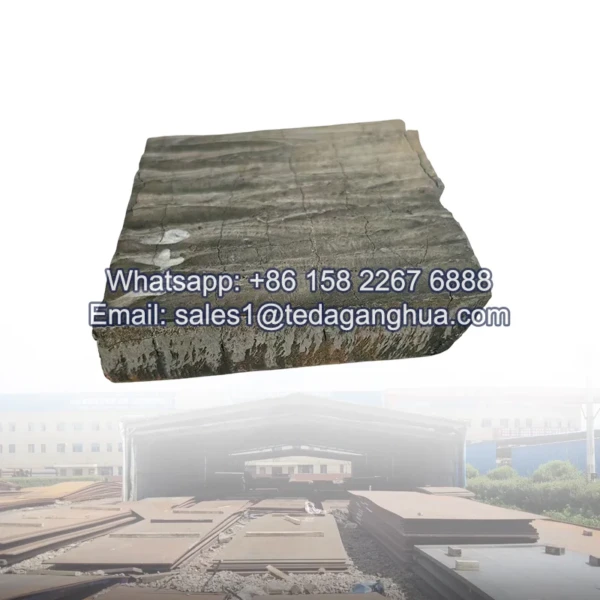

Clad Wear Plate
Clad Wear Plate is a versatile composite material that uses different wear-resistant cladding systems such as chromium carbide, tungsten carbide, martensitic steel, ceramic composites, and nickel-based alloys. Each material offers different balances of wear resistance, impact resistance, and environmental suitability, allowing engineers to select the most appropriate solution for specific industrial conditions.
- Description
Clad Wear Plate is a composite wear-resistant steel product made by bonding a high-performance wear-resistant layer onto a carbon steel or low-alloy steel base plate. It is designed to combine structural strength with excellent surface wear resistance, making it widely used in mining, cement, power generation, steel plants, and bulk material handling systems.
The performance of clad wear plates depends mainly on the type of wear-resistant cladding material used on the surface layer.
Structure of Clad Wear Plate
A typical clad wear plate consists of two layers:
- Base Layer: Carbon steel or low-alloy steel for strength and toughness
- Cladding Layer: Wear-resistant alloy layer for abrasion and erosion resistance
The two layers are metallurgically bonded, ensuring strong adhesion and long service life under harsh conditions.
Common Wear Resistant Cladding Materials
Different cladding materials are selected based on working conditions such as abrasion, impact, temperature, and particle size.
1. Chromium Carbide Overlay (CCO)
This is the most widely used cladding material for wear plates.
- High chromium and carbon content
- Forms hard carbide phases (Cr₇C₃, Cr₂₃C₆)
- Hardness: typically 55–65 HRC
- Excellent resistance to sliding abrasion and particle erosion
Typical applications: mining liners, cement chutes, coal handling systems
2. Tungsten Carbide Composite Layer
A high-end wear-resistant cladding material.
- Contains tungsten carbide (WC) particles
- Extremely high hardness
- Superior abrasion resistance compared to chromium carbide
- Higher cost and specialized use
Typical applications: extreme wear zones, high-value equipment protection
3. Martensitic Steel Overlay
A tough and wear-resistant cladding system based on alloy steel.
- Martensitic microstructure
- Balanced hardness and toughness
- Good impact resistance
- Moderate abrasion resistance
Typical applications: heavy impact + wear environments
4. Ceramic-Embedded Cladding
A composite system with ceramic particles distributed in a metal matrix.
- Ceramic particles such as alumina or silicon carbide
- Extremely high resistance to particle erosion
- Lower impact resistance compared to metallic overlays
Typical applications: high-speed particle flow systems, pneumatic conveying
5. Nickel-Based Alloy Cladding
Used in special environments requiring corrosion and wear resistance.
- Excellent corrosion resistance
- Good performance at high temperatures
- Moderate wear resistance compared to carbide systems
Typical applications: chemical industry, high-temperature equipment
Performance Comparison of Cladding Materials
| Cladding Type | Wear Resistance | Impact Resistance | Temperature Resistance | Typical Use |
|---|---|---|---|---|
| Chromium Carbide | Very High | Medium | Medium | General industrial wear |
| Tungsten Carbide | Extremely High | Medium–Low | Medium | Severe abrasion zones |
| Martensitic Steel | Medium–High | High | Medium | Impact + wear conditions |
| Ceramic Composite | Very High | Low–Medium | High | Erosion environments |
| Nickel Alloy | Medium | Medium | High | Corrosive + high-temp use |
Key Performance Features of Clad Wear Plate
- Combines structural strength with surface wear resistance
- Customizable wear layer according to application
- Long service life in harsh industrial environments
- Reduces maintenance and downtime costs
- Suitable for complex fabrication and installation
Typical Industrial Applications
Clad wear plates are widely used in:
- Mining and quarry equipment
- Cement production systems
- Coal and ash handling systems
- Steel plant conveyors and chutes
- Power plant wear components
- Bulk material transfer systems
- Heavy industrial machinery protection
