Carbide Wear Plate: High-Chromium vs Low-Chromium Overlay Composition Comparison

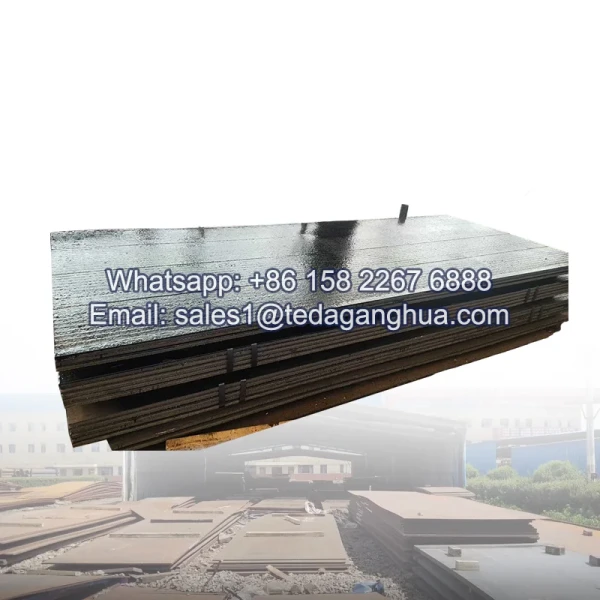

Carbide wear plate is a hardfaced composite steel plate produced by depositing a carbide-rich alloy layer onto a carbon steel or low-alloy steel base. The wear resistance of the overlay layer is mainly determined by its chromium content, which directly affects hardness, carbide formation, toughness, and service life.
In practical engineering applications, carbide wear plates are generally divided into high-chromium overlay and low-chromium overlay systems.
1. Basic Composition Difference
| Type | Main Composition |
|---|---|
| High-chromium carbide wear plate | High Cr (20–35%) + C + Fe matrix + alloy additives |
| Low-chromium carbide wear plate | Lower Cr (5–15%) + C + Fe matrix + minor alloy elements |
The key difference is the amount and distribution of chromium carbide phases formed during welding.
2. Carbide Formation and Microstructure
| Type | Carbide Structure | Main Wear Phase |
|---|---|---|
| High-chromium | Dense Cr7C3 / Cr23C6 carbides | Large hard carbide network |
| Low-chromium | Mixed carbides with lower density | Less carbide reinforcement |
High-chromium plates form a much denser and harder carbide network, which significantly improves abrasion resistance.
3. Hardness and Wear Resistance Comparison
| Property | High-Chromium | Low-Chromium |
|---|---|---|
| Surface hardness | HRC 58–65 | HRC 45–55 |
| Abrasion resistance | Excellent | Moderate |
| Impact resistance | Medium to low | Higher toughness |
| Service life in abrasion | Longer | Shorter |
4. Performance Difference in Applications
| Working Condition | Recommended Type |
|---|---|
| Severe sliding abrasion (cement, mining, coal) | High-chromium carbide wear plate |
| Mixed impact + abrasion | Low-chromium carbide wear plate |
| High impact environments | Low-chromium or complex alloy systems |
5. Cost Difference
- High-chromium plates: Higher material cost due to increased alloy content
- Low-chromium plates: More economical, suitable for general wear conditions
Higher chromium content generally increases both hardness and cost.
6. Key Selection Principle
- Choose high-chromium: When abrasion is the dominant wear mechanism
- Choose low-chromium: When impact and toughness are also required
Proper selection improves service life and reduces total maintenance cost.
7. Teda Ganghua Carbide Wear Plate Supply Capability
As a professional wear-resistant steel supplier, Teda Ganghua provides both high-chromium and low-chromium carbide wear plate solutions, helping customers select the most suitable material based on actual working conditions in mining, cement, steel, and power industries.
We support customized cutting, fabrication, and engineered wear system design.
Explore our wear-resistant steel products here:
Chromium Carbide Overlay Plate
Conclusion
High-chromium carbide wear plates provide superior hardness and abrasion resistance, while low-chromium plates offer better toughness and cost efficiency. The best choice depends on whether the application is dominated by abrasion or impact wear.
