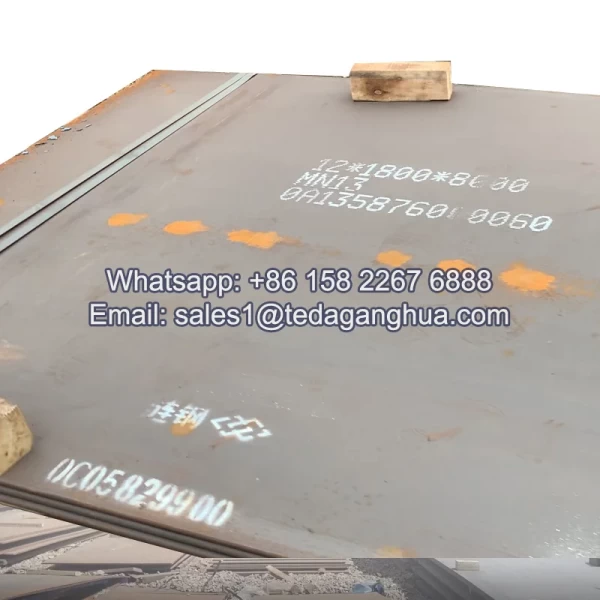

High Carbon Manganese Steel
High Carbon Manganese Steel is a high-performance wear-resistant steel with carefully balanced chemical composition and mechanical properties. It is widely used to produce crusher liners, grinding mill liners, bucket liners, and other high-impact, abrasion-resistant components, providing superior durability, toughness, and cost-effective long-term performance in mining, construction, cement, and heavy industry applications.
- Description
High Carbon Manganese Steel (HCMS), also known as high manganese steel, is an austenitic, wear-resistant steel widely used in heavy-duty applications. Its combination of high carbon and high manganese content provides exceptional wear resistance, strong work-hardening ability, and superior toughness, making it ideal for impact-intensive environments such as mining, crushers, and earth-moving machinery.
Chemical Composition
The typical chemical composition of high carbon manganese steel is designed to achieve maximum wear resistance and toughness:
| Element | Typical Range (wt%) | Function |
|---|---|---|
| Carbon (C) | 1.0 – 1.4 | Provides surface hardness and work-hardening capability |
| Manganese (Mn) | 11 – 14 | Austenite stabilization, toughness, abrasion resistance |
| Silicon (Si) | ≤ 1.0 | Deoxidation and strength enhancement |
| Phosphorus (P) | ≤ 0.07 | Impurity control |
| Sulfur (S) | ≤ 0.03 | Impurity control |
| Chromium (Cr) | ≤ 2.0 | Improves hardness and wear resistance |
| Nickel (Ni) | ≤ 1.0 | Enhances toughness |
| Iron (Fe) | Balance | Base metal |
Mechanical Performance
High carbon manganese steel combines ductility and hardness through its work-hardening behavior:
| Property | Typical Value |
|---|---|
| Yield Strength | 350 – 450 MPa |
| Tensile Strength | 750 – 1100 MPa |
| Elongation | ≥ 30% |
| Hardness (solution treated) | 180 – 220 HB |
| Hardness (work hardened) | Up to 500 HB |
Key Features:
High impact toughness for shock-resistant applications
Strong work-hardening for enhanced wear resistance
Non-magnetic in solution-treated condition
Durable under heavy abrasion and repeated impacts
Common Wear-Resistant Finished Products
High carbon manganese steel is processed into various wear-resistant finished components, depending on industrial requirements:
Crusher Liners: Jaw plates, cone liners, impact plates
Grinding Mill Liners: Ball mill liners, SAG mill liners
Earth-Moving Components: Bucket liners, shovel teeth, dipper edges
Chutes and Hoppers: Liners for handling abrasive materials
Heavy Machinery Parts: Slag plates, screens, and impact plates
These components rely on surface hardening under impact, where the steel’s work-hardened layer protects the component while maintaining a tough, ductile core, significantly extending service life.
