X120Mn12 Introduction
Product Basic Information:
Chemical Composition:
| Grade | C | Si | Mn | P | S |
| Mn13 | 0.90-1.20 | 0.30-0.80 | 11.00-14.00 | ≤0.035 | ≤0.030 |
Mechanical Properties:
| Grade | Tensile strength | Elongation | Impact performance 20 ° C | Initial hardness value (HB) | Hardness value after hardening (HB) | Cold bend 180° |
| Mn13 | ≥800MPa | ≥40% | ak≥90(J) | 200-250 | >300 | YES |
Similar steel grade & equivalent steel materials:
| USA | Japanese | Gemany | British | France | International | Chinese |
| ASTM&AISI&SAE | JIS | EN DIN | EN BS | EN NF | ISO | GB |
| A128 | SCMnH11 | X120Mn12
1.3401 |
X120Mn12
1.3401 |
Z120Mn12
1.3401 |
—— | Mn13 |
X120Mn12 mechanical properties:
tensile strength σ b (MPa)：≥800
yield strength σ s (MPa)：≥500
elongation δ (％)：≥20
Hardness: ≤ 229HB
Product Application Areas:
X120Mn12 high manganese steel plate is widely used in building, industry, machinery etc.

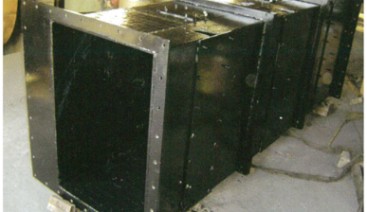

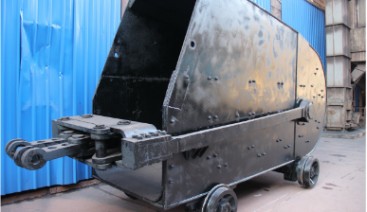

Such as wear-out parts of impact resistance ,such as scaleboard of shot-blasting machine, scaleboard of ball crusher; ball grinder,bucket lip of grab,screw die of crusher,hoppers, truck Bed Bodies, scrapers, conveyor Parts, baffle plates, safe deposit box and so on .
Also used to make simply structure ,the forging which request wear-resistance of low impact,such as scaleboard , pinion rack,the wall of crashing, sleeve.
